PRIVACY SMART GLASS
Design Freedom
The future is here with endless design opportunities for space customization with Privacy Switchable Glass. You control your privacy with the touch of a button. The glass will change instantly from milky white to transparent at your demand.
Advantages
Max Sunlight
Minimise energy cost
Instant privacy
What is Form5 Switchable Glass?

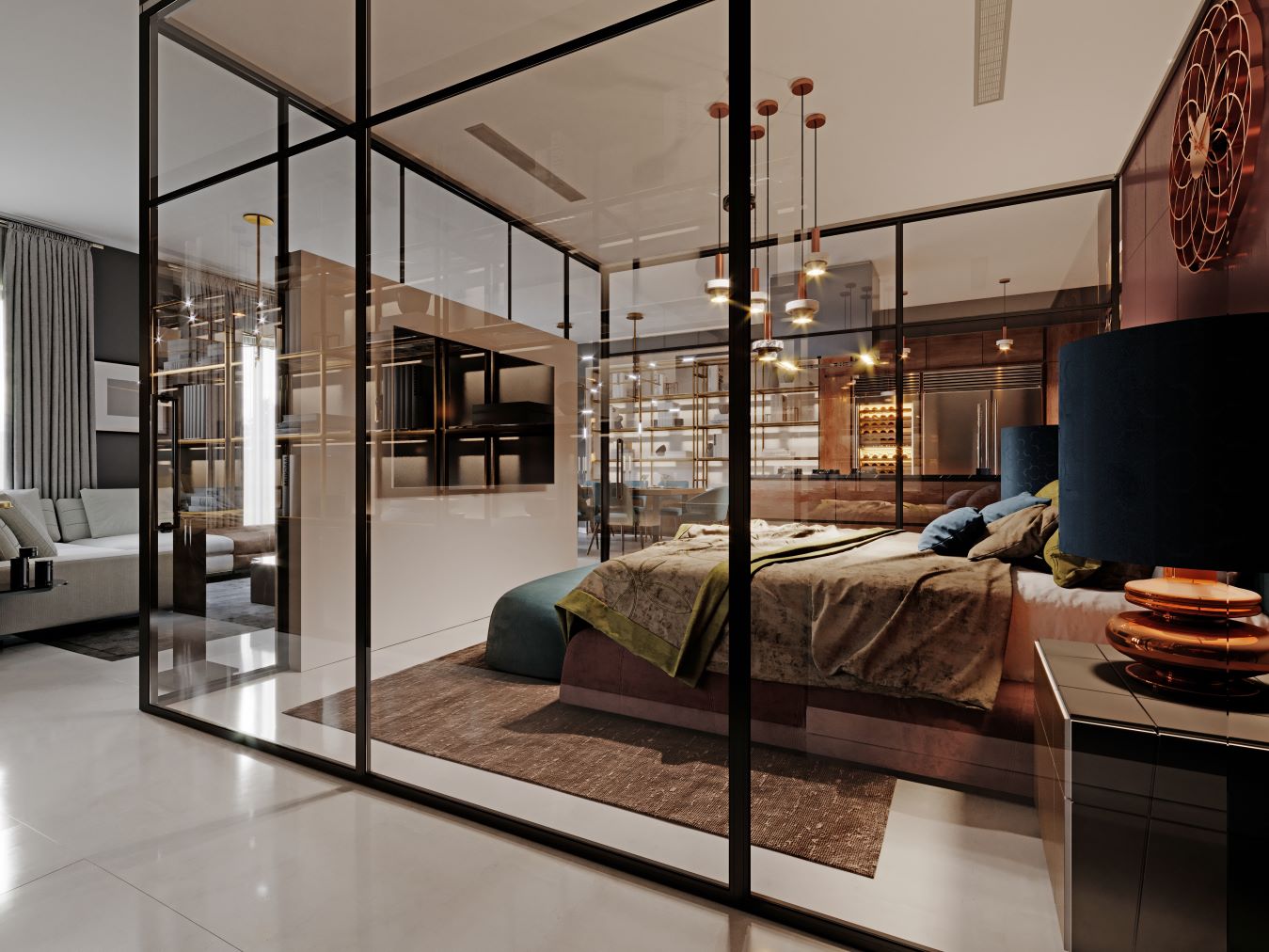

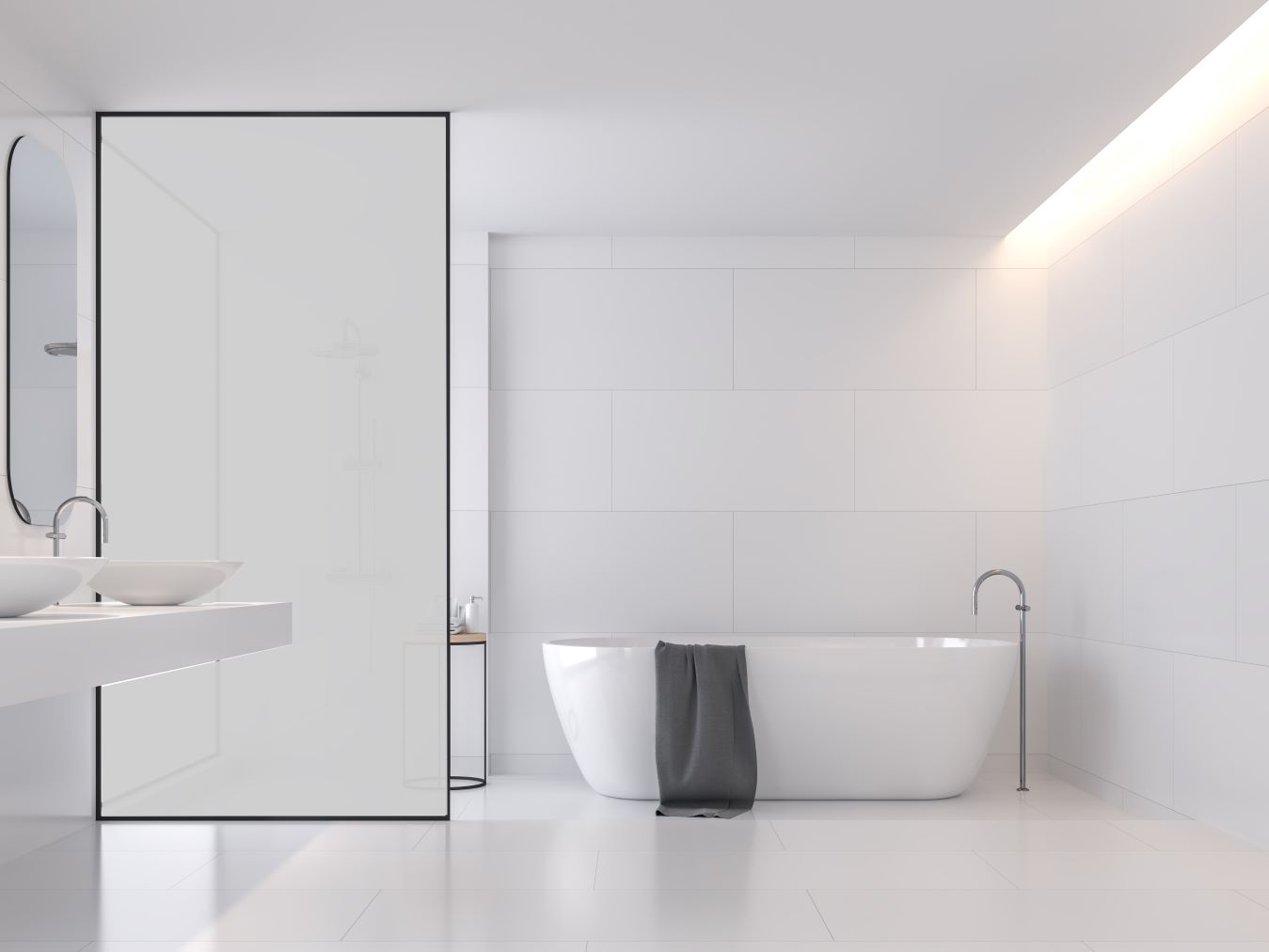

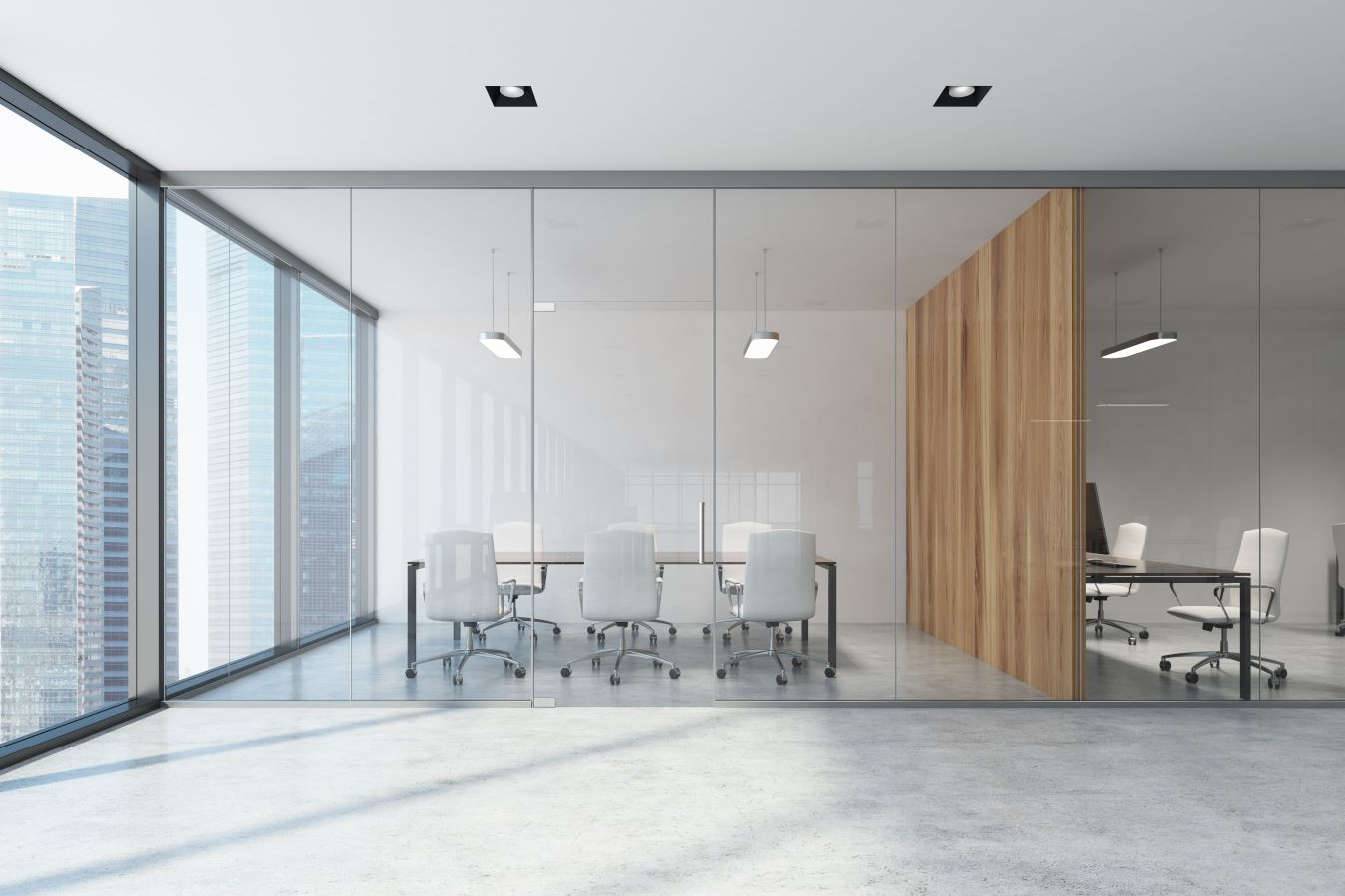

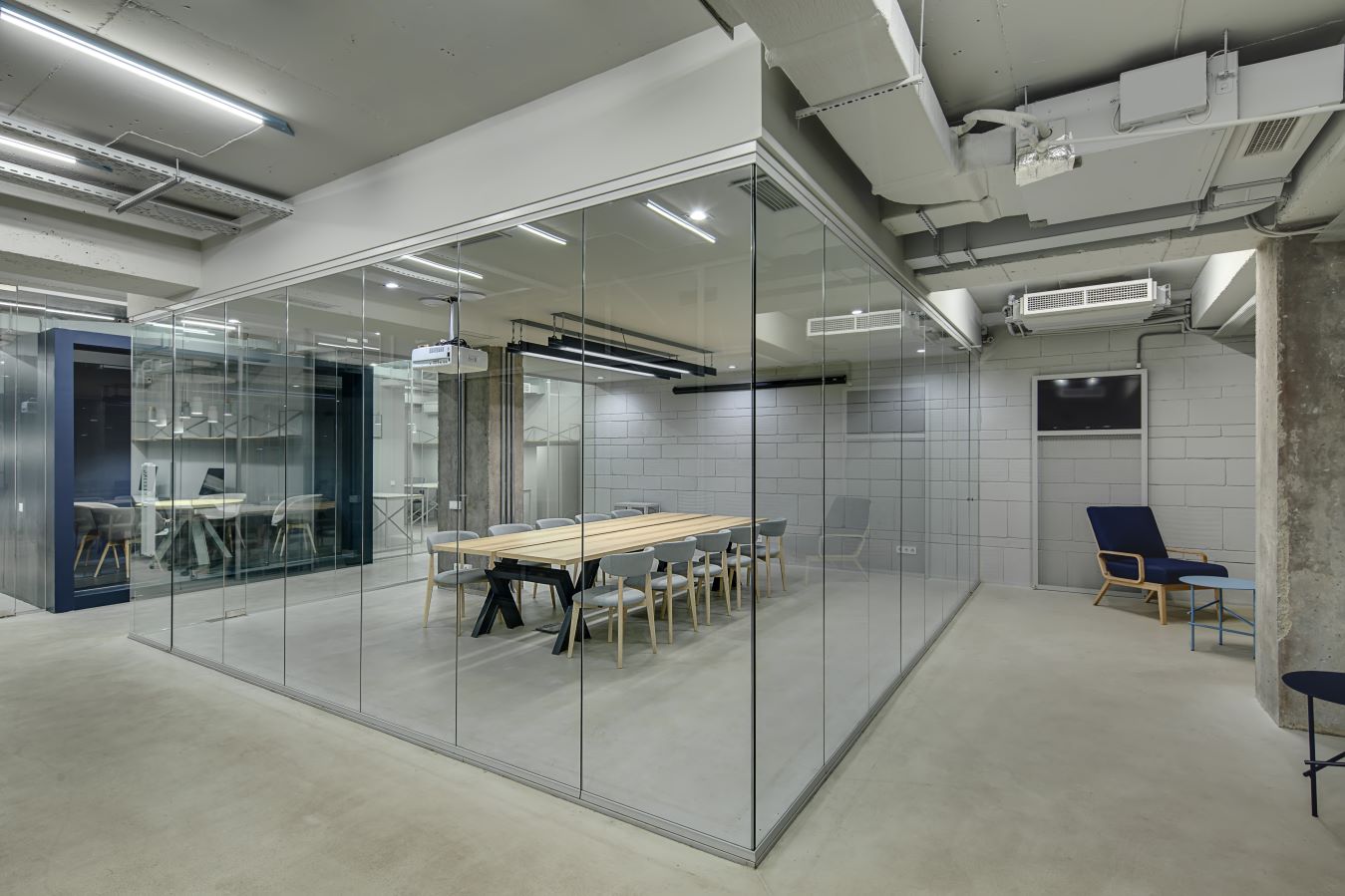

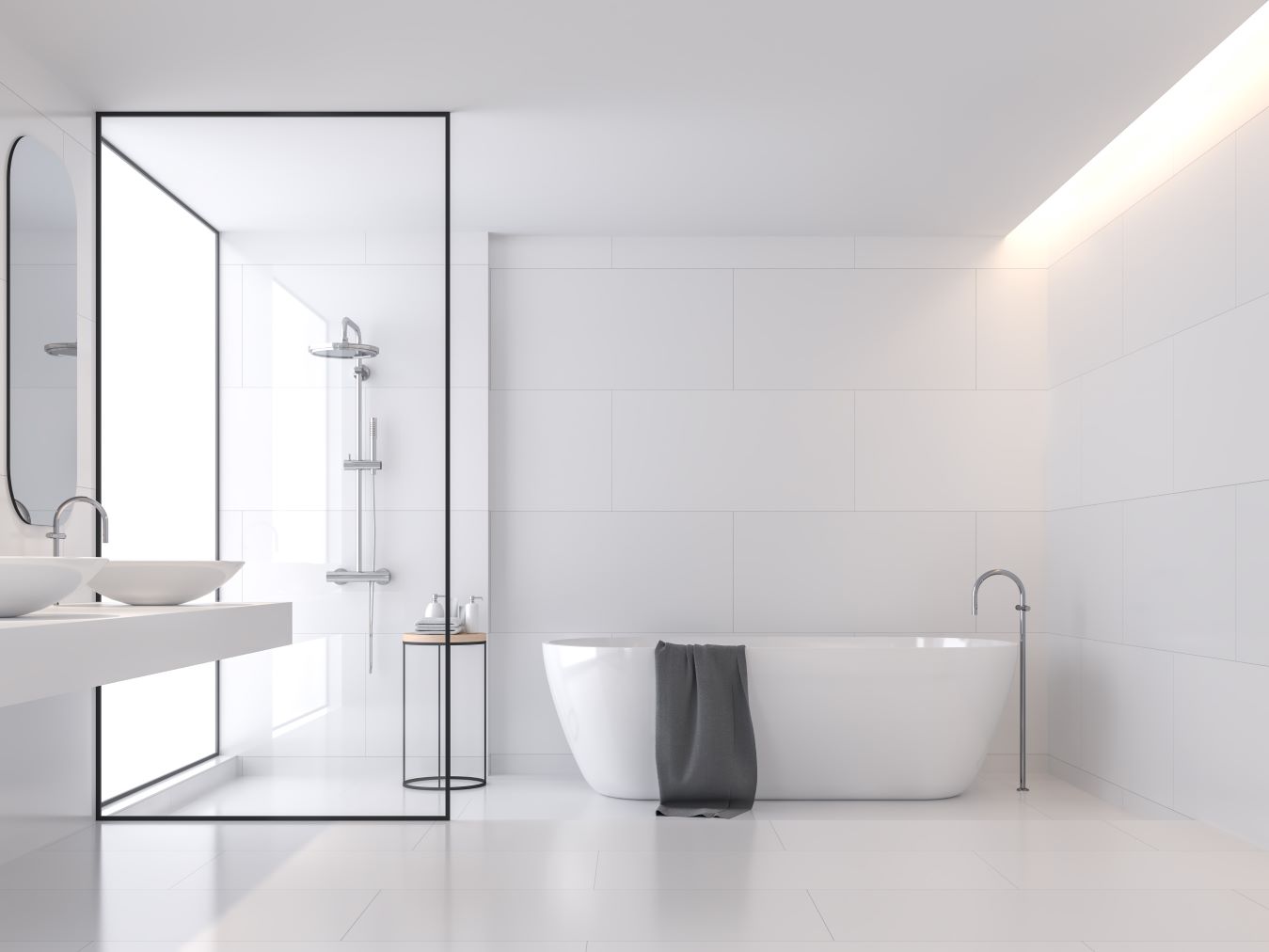

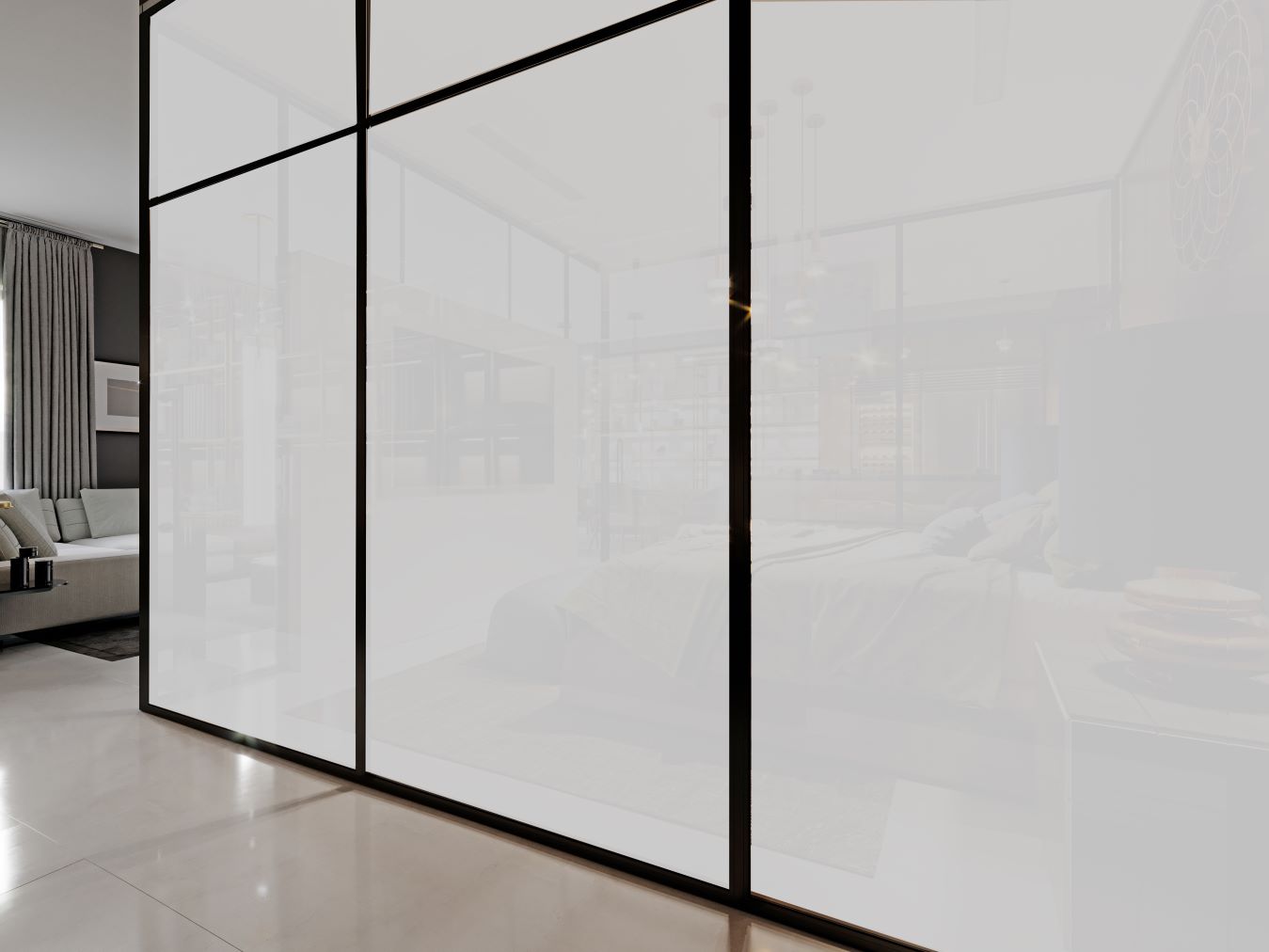

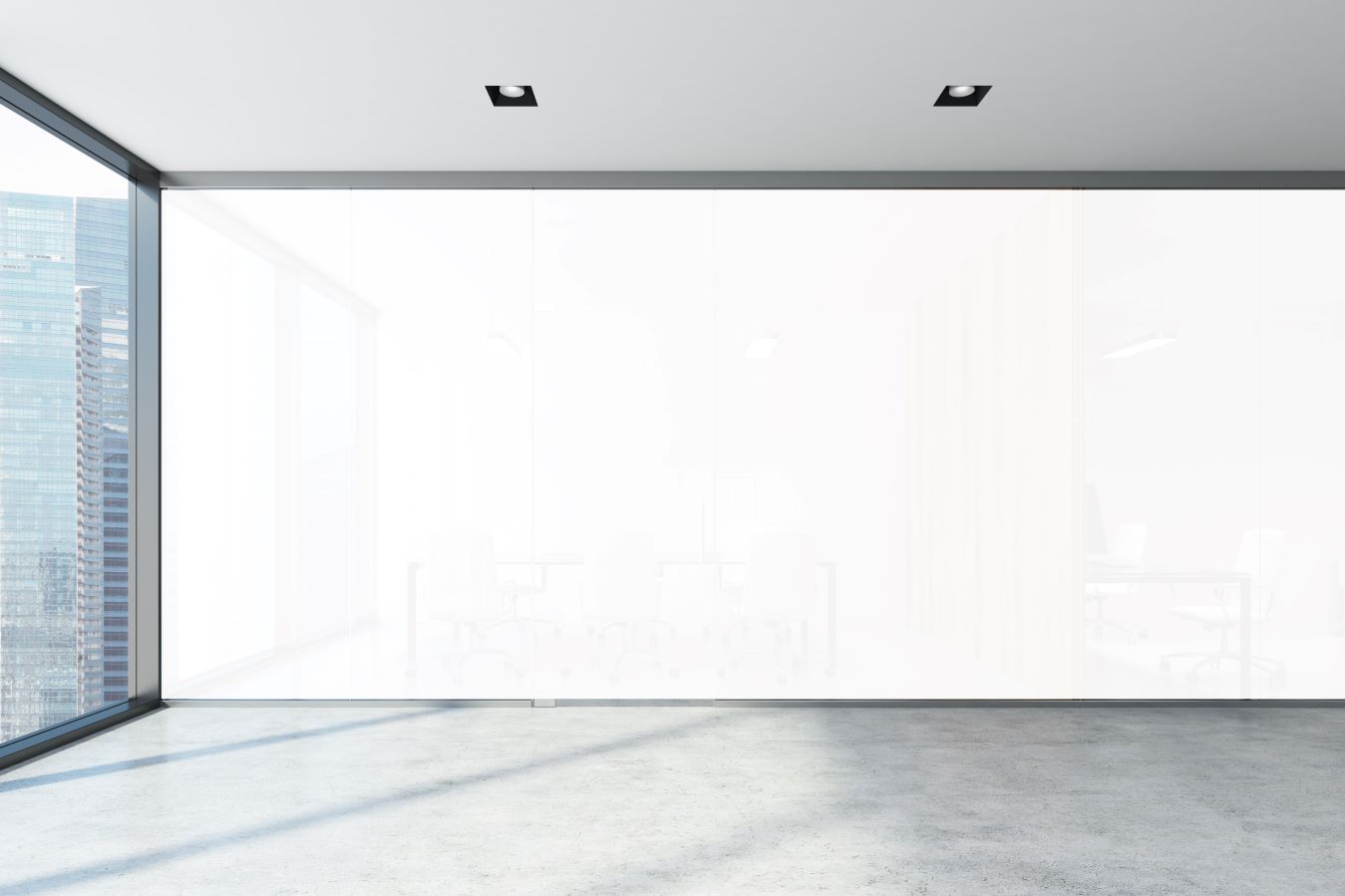

It is electronically controlled switchable glass. With just one click you can change an opaque glass wall into a transparent glass pane
TOTAL PRIVACY OR FULL TRANSPARENCY WITHOUT ANY MOVING PARTS.
The original ON/OFF switchable smart glass is a laminated glass panel with a polymer dispersed liquid crystal interlayer film (PDLC). It offers instant privacy at the flick of a switch by changing its state from transparent to opaque and vice versa through a small electrical current.
Form5 Switchable Glass Control Systems
Manual On/OFF Wall switch
Remote Control
Home Automation (Integrated PDA Control)
Contact us to get your project started.
Table Specifications
| ON | OFF | ||
|---|---|---|---|
| Parallel Light Transmission | >80% | <4% | |
| Visible Light Transmission | >81% | >50% | |
| Haze | <4% | >95% | |
| Viewing Angle | ≥150 degree | - | |
| UV Blocking | ≥98% | ≥98% | |
| IR Blocking | 40% | 90% | |
| Operating Voltage | 48-65 VAC | - | |
| Frequency | 50~60HZ | - | |
| Current | 100 mA Sq. m (0.9 mA Sq. ft) |
- | |
| Power Consumption | <5W/Sq. m (<0.46W/Sq. Ft) |
- | |
| Switching Time | <200ms | <10ms | |
| Total Glass Thickness | 10mm, 12mm, 14mm, 22mm (3/8", 1/2", 9/16", 14/16") or customized | ||
| Glass Structure | Triplex, IGU or customized | ||
| Max Size | 2000 by 6000mm (78.7" by 236.2") | ||
| Color | White (Gray, Black upon MOQ) | ||
| Working Temperature | -20°C ~ 70°C (-4°F ~ 160°F) | ||
| Storage Temperature | –20°C~ 70°C (-4°F ~ 160°F) | ||
| Life Time | >20 Years | ||
Markets

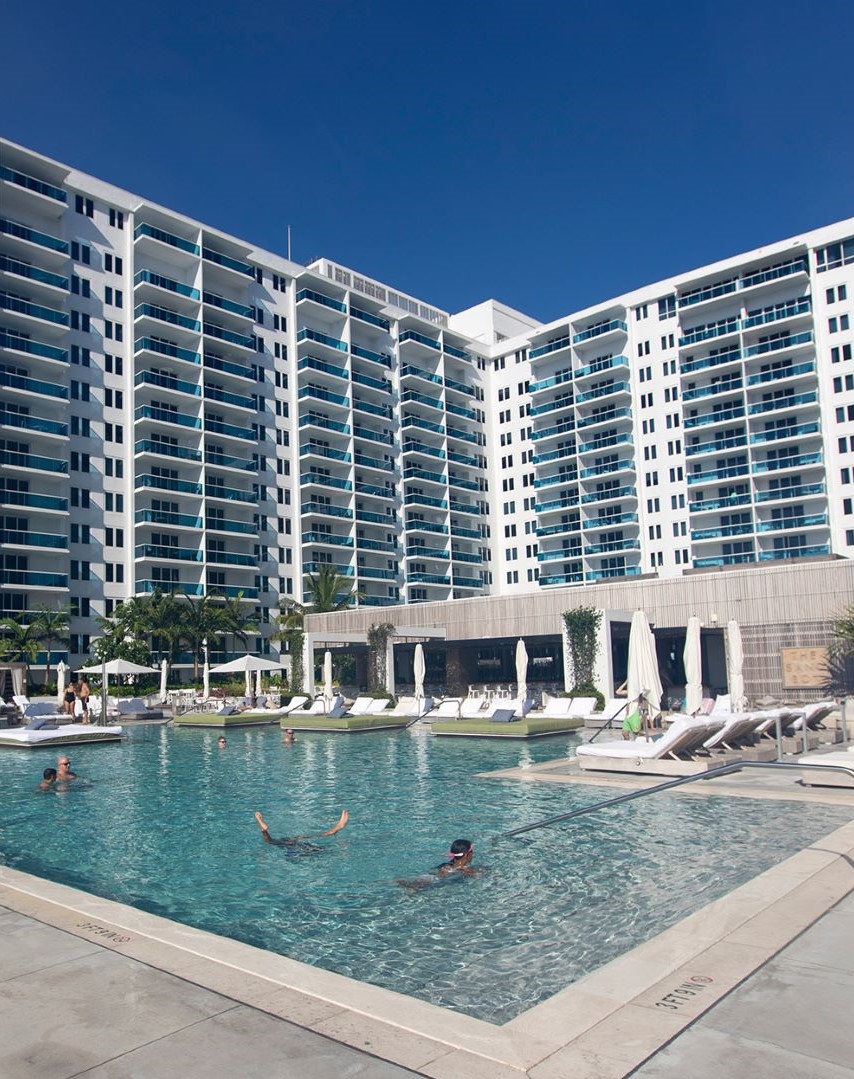

Hospitality

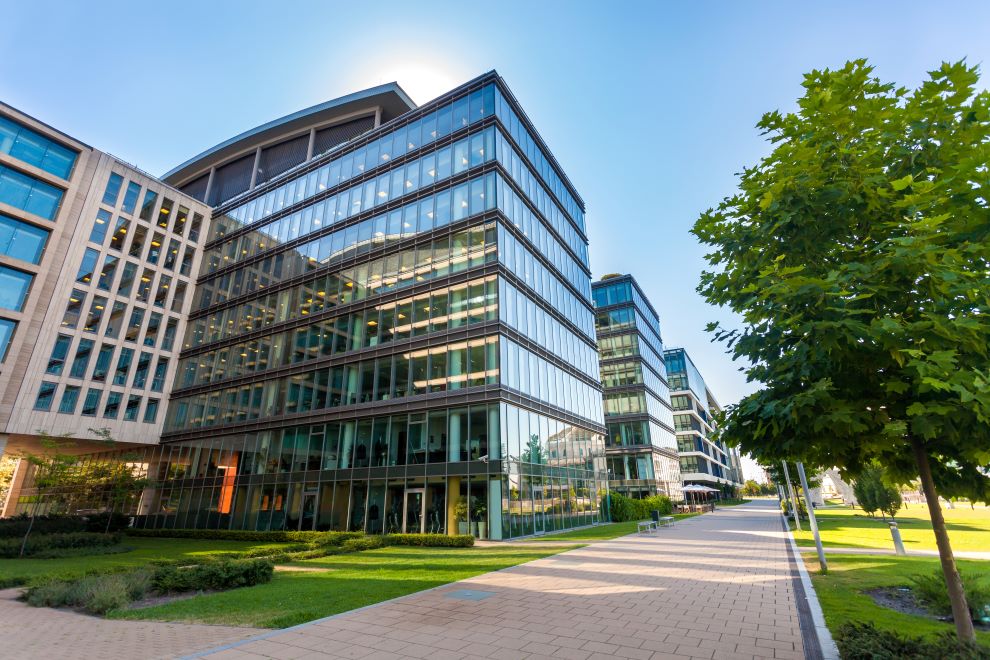

Corporate
Healthcare

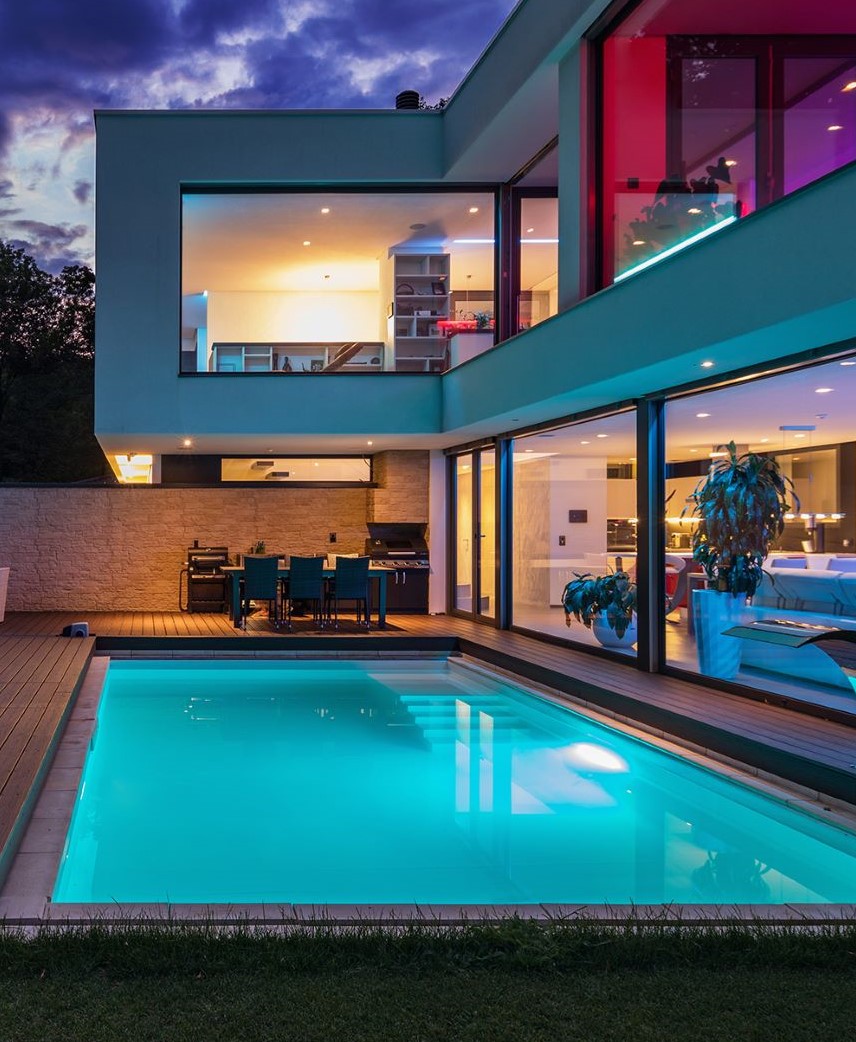

Residential

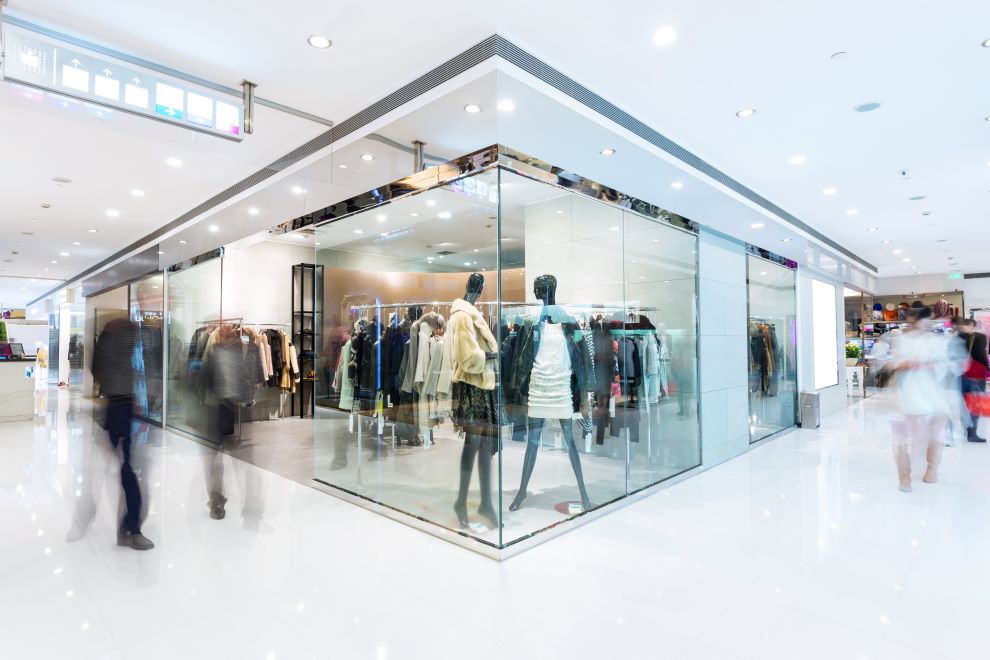

Retail
Get a Quote
Tell us about your project and how we can help
